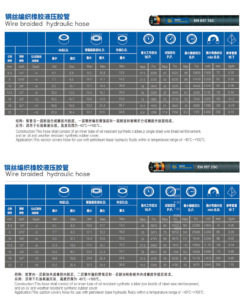

Tabel Spesifikasi

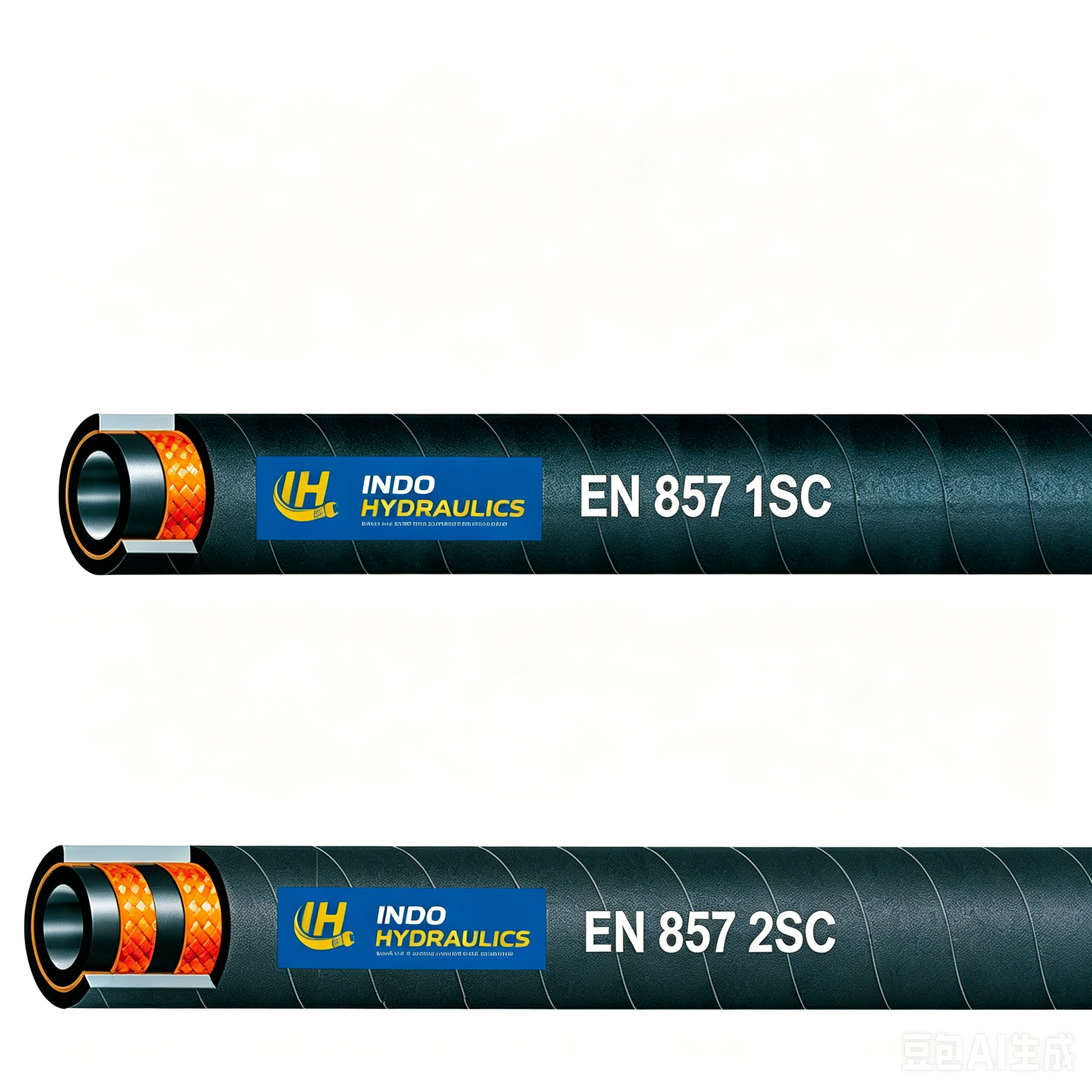

EN 857 1SC / 2SC Hydraulic Hose

EN 857 1SC / 2SC Hydraulic Hose is designed for compact hydraulic systems where reduced bend radius and superior flexibility are required. Compared with EN 853 1SN and 2SN hoses, EN 857 1SC and 2SC hoses provide a smaller outside diameter and tighter bend radius while maintaining the same pressure performance.

The hose is reinforced with one or two layers of high tensile steel wire braid, ensuring reliable operation under medium and high-pressure hydraulic applications. Its compact construction makes it ideal for modern hydraulic equipment with limited installation space.

The abrasion-resistant synthetic rubber cover offers excellent resistance to weather, ozone, and external wear, ensuring long service life even in harsh working environments.

Konstruksi

Tube: Oil-resistant synthetic rubber

Reinforcement:

• EN857 1SC: One high tensile steel wire braid
• EN857 2SC: Two high tensile steel wire braids

Cover: Abrasion, weather, and ozone resistant synthetic rubber

Features

• Compact hydraulic hose design
• Reduced bend radius
• Excellent flexibility
• High pressure resistance
• Superior abrasion resistance
• Long service life
• Suitable for confined installation spaces

Applications

• Excavators
• Wheel Loaders
• Mining Equipment
• Agricultural Machinery
• Industrial Hydraulic Systems
• Construction Machinery
• Mobile Hydraulic Equipment

Standards

EN 857 1SC / EN 857 2SC

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Available Cover Types

• Smooth Cover
• Wrapped Cover

Layanan OEM

Indo Hydraulics provides OEM branding, customized packaging, and private label services for distributors, wholesalers, and hydraulic hose assemblers worldwide.
