High Pressure Hydraulic Jack Hose for Hydraulic Jack and Lifting Equipment

Selang Jack

Harga berdasarkan permintaan

High-pressure hydraulic jack hose designed for hydraulic jacks, lifting equipment, and hydraulic tools. Reinforced with high tensile steel wire for superior pressure resistance, flexibility, and long service life.

SKU: JACK-HOSE 分类： Selang Jack, Selang Hidrolik Anyaman Cover Bertekstur

Spesifikasi Produk

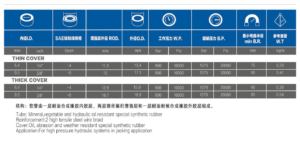

Tabel Spesifikasi

Parameter katalog untuk ukuran, tekanan, radius tekuk, dan berat. Tabel ini dapat diedit di editor produk.

Product Parameters

Produk	Selang Jack
Catalog reference	Hose brochure catalog page 34.
Editable table fields	I.D., reinforced outside diameter, outside diameter, working pressure, proof pressure, burst pressure, minimum bend radius, and weight.
Selection note	Confirm hose size, pressure rating, cover type, temperature range, application medium, fitting end type, quantity, and delivery market before quotation.

Catatan Katalog

Deskripsi

Tabel Spesifikasi

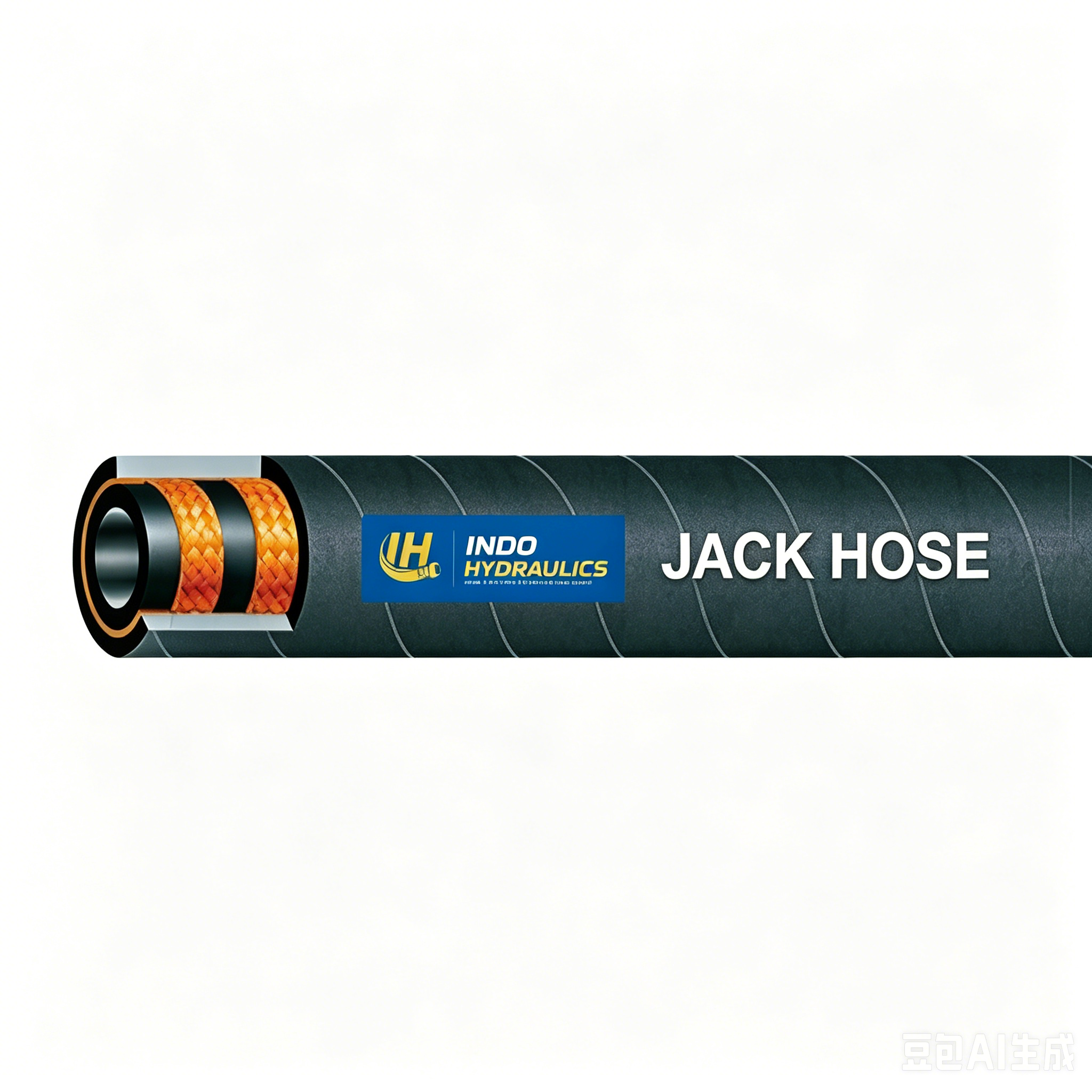

Indo Hydraulics High Pressure Jack Hose is specially designed for hydraulic jacks, hydraulic cylinders, lifting systems, and high-pressure hydraulic tools.

Manufactured with oil-resistant synthetic rubber inner tube, high tensile steel wire reinforcement, and abrasion-resistant outer cover, this hose provides excellent pressure resistance, flexibility, and durability under demanding working conditions.

The hose is widely used in hydraulic jacking systems, bridge construction, heavy equipment maintenance, mining operations, and industrial lifting applications.

Features:

• Designed for hydraulic jack and lifting equipment applications
• High tensile steel wire reinforcement for extreme pressure performance
• Excellent resistance to hydraulic oils, abrasion, and weather
• Flexible construction for easy installation
• Long service life in demanding industrial environments
• Available with various fittings and custom assemblies

Aplikasi:

Hydraulic jacks, lifting systems, hydraulic cylinders, construction machinery, mining equipment, bridge engineering, and industrial maintenance systems.

Product Technical Details

Selang Jack technical parameters and application fit

This product page is organized for quotation and engineering review. Confirm hose size, pressure rating, medium, temperature, fitting ends and quantity before final selection.

Konstruksi	Wrapped rubber cover, synthetic rubber tube and steel wire braid reinforcement.
Reinforcement	One or two wire braid reinforcement, plus specialty textile or compact lines where applicable.
Cover	Wrapped cover for abrasion resistance, handling grip and outdoor service conditions.
Working pressure	Ranges from low return lines to high-pressure braided hose; final pressure depends on standard and I.D.
Burst pressure	Confirm minimum burst pressure from the product chart; do not mix low pressure return hose with pressure lines.
Temperature	Common hydraulic oil service is usually around -40C to +100C; special media or heat requires confirmation.
Standar	SAE 100 R1 / R2 / R3 / R6 / R16 / R17 / R19, EN853, EN857 and related wrapped cover families.
Aplikasi	Outdoor machinery, mining, plantation equipment, repair shops and severe-duty replacement lines.
Fitting compatibility	Match ferrule, stem and crimp diameter to wrapped cover hose construction.

Product FAQ

How should I select wrapped cover braided hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, agriculture, palm oil equipment, repair workshops and distributors.
