Detail Produk

Selang Hidrolik Anyaman Cover Bertekstur SAE 100 R17 / R19

Tinjau keluarga katalog, kategori produk, dan jalur permintaan sebelum meminta penawaran.

Kategori aktif Permintaan distributor Tinjauan spesifikasi
SAE 100 R17 Wrapped Cover Hydraulic Hose

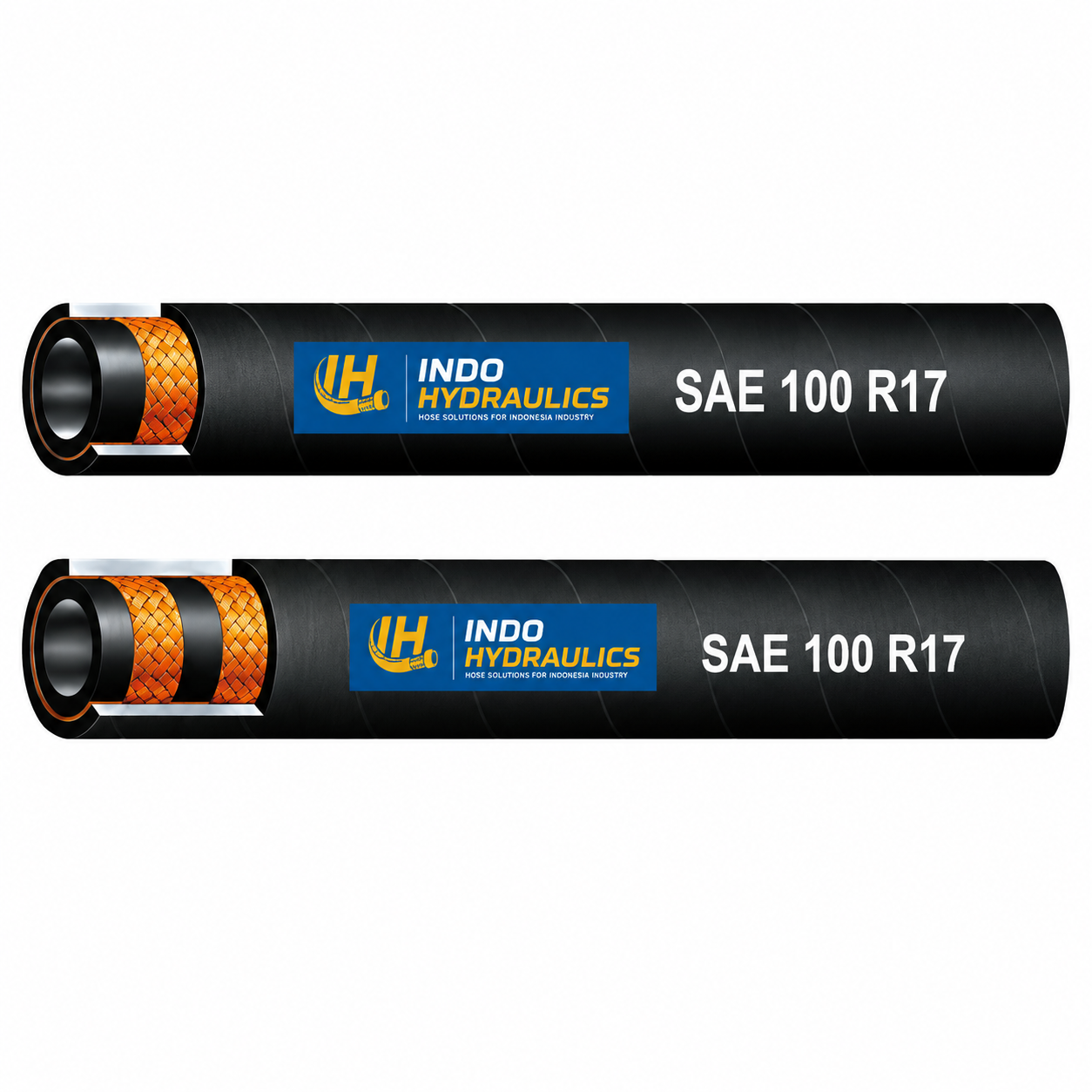

Selang Hidrolik Anyaman Cover Bertekstur SAE 100 R17 / R19

Harga berdasarkan permintaan

SAE 100 R17 R19 Wrapped Cover Hydraulic Hose is a compact high-pressure hose designed for hydraulic systems requiring excellent flexibility and reduced bend radius. Ideal for construction, mining, agricultural and industrial equipment.

SKU: SAE-100-R17-R19-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE 分类： ,

Spesifikasi Produk

Tabel Spesifikasi

Parameter katalog untuk ukuran, tekanan, radius tekuk, dan berat. Tabel ini dapat diedit di editor produk.

Product Parameters

ProdukSelang Hidrolik Anyaman Cover Bertekstur SAE 100 R17 / R19

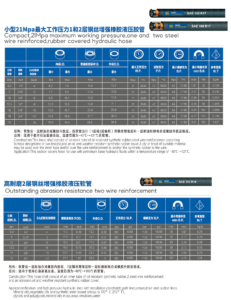

Catalog referenceHose brochure catalog page 29.
Editable table fieldsI.D., reinforced outside diameter, outside diameter, working pressure, proof pressure, burst pressure, minimum bend radius, and weight.
Selection noteConfirm hose size, pressure rating, cover type, temperature range, application medium, fitting end type, quantity, and delivery market before quotation.

Deskripsi

Tabel Spesifikasi



SAE 100 R17 R19 Wrapped Cover Hydraulic Hose

SAE 100 R17 R19 Wrapped Cover Hydraulic Hose is designed for compact high-pressure hydraulic systems where reduced bend radius and superior flexibility are required. The hose is reinforced with high tensile steel wire braids to provide reliable performance under demanding operating conditions.

The wrapped textile outer cover offers excellent abrasion resistance, making this hose suitable for harsh environments in construction, mining, agriculture, and industrial applications. Compared with traditional R1 and R2 hoses, SAE 100 R17 provides a smaller bend radius while maintaining high working pressure.

Konstruksi

  • Tube: Oil-resistant synthetic rubber
  • Reinforcement: One or two high tensile steel wire braids
  • Cover: Wrapped synthetic rubber resistant to abrasion, weather, and ozone

Features

  • Compact design
  • Reduced bend radius
  • Excellent flexibility
  • High-pressure resistance
  • Superior abrasion resistance
  • Long service life

Applications

  • Excavators
  • Construction Machinery
  • Mining Equipment
  • Agricultural Machinery
  • Industrial Hydraulic Systems
  • Mobile Hydraulic Equipment

Standar

SAE J517 100 R17 R19

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Product Technical Details

Selang Hidrolik Anyaman Cover Bertekstur SAE 100 R17 / R19 technical parameters and application fit

This product page is organized for quotation and engineering review. Confirm hose size, pressure rating, medium, temperature, fitting ends and quantity before final selection.

KonstruksiWrapped rubber cover, synthetic rubber tube and steel wire braid reinforcement.
ReinforcementOne or two wire braid reinforcement, plus specialty textile or compact lines where applicable.
CoverWrapped cover for abrasion resistance, handling grip and outdoor service conditions.
Working pressureRanges from low return lines to high-pressure braided hose; final pressure depends on standard and I.D.
Burst pressureConfirm minimum burst pressure from the product chart; do not mix low pressure return hose with pressure lines.
TemperatureCommon hydraulic oil service is usually around -40C to +100C; special media or heat requires confirmation.
StandarSAE 100 R1 / R2 / R3 / R6 / R16 / R17 / R19, EN853, EN857 and related wrapped cover families.
AplikasiOutdoor machinery, mining, plantation equipment, repair shops and severe-duty replacement lines.
Fitting compatibilityMatch ferrule, stem and crimp diameter to wrapped cover hose construction.

Product FAQ

How should I select wrapped cover braided hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, agriculture, palm oil equipment, repair workshops and distributors.
