SAE 100 R16 Wrapped Cover Braided Hydraulic Hose

Review the catalog family, product category and inquiry path before requesting a quote.

Live categories Distributor inquiry Specification review

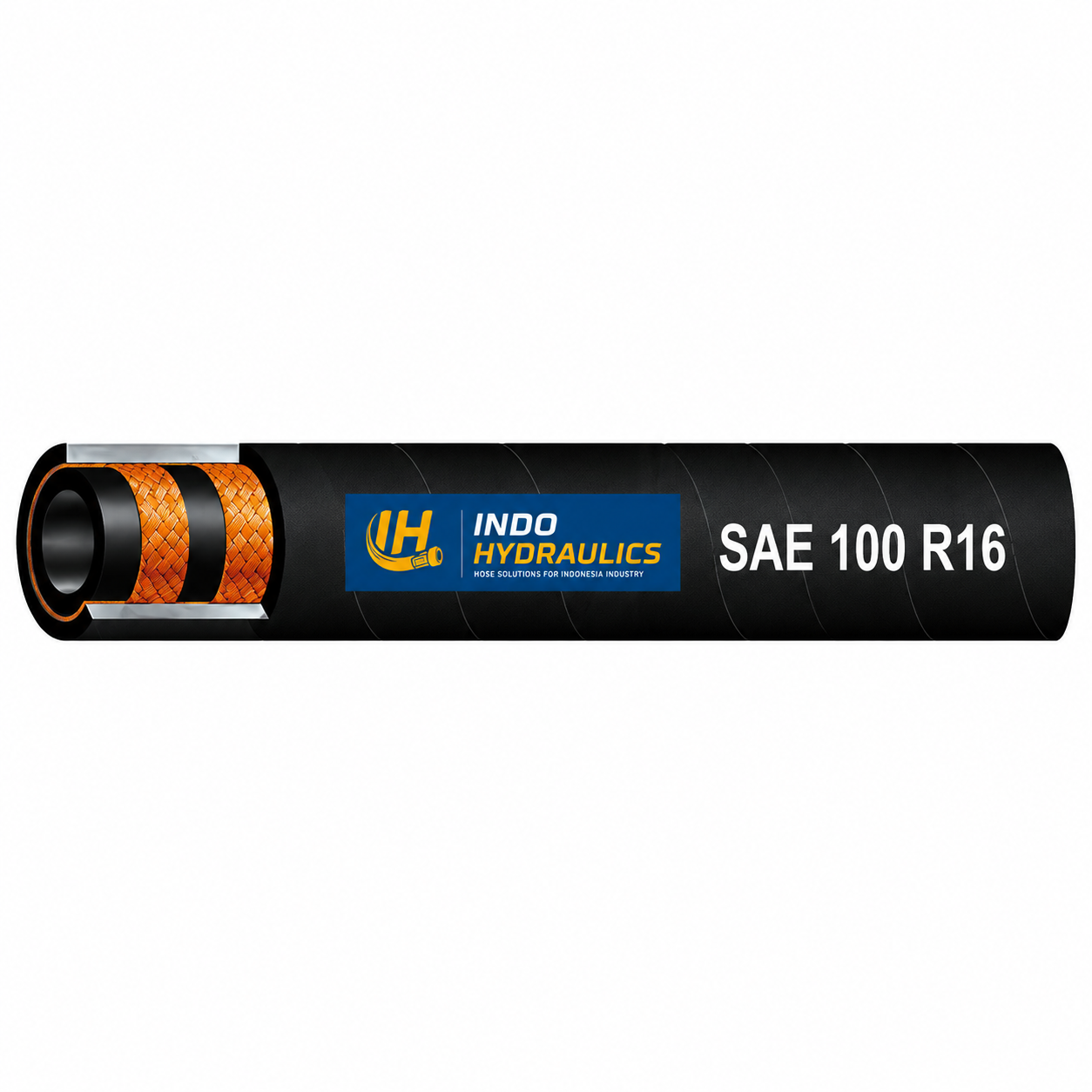

SAE 100 R16 Hydraulic Hose Indo Hydraulics high pressure rubber hose braided steel wire

SAE 100 R16 Wrapped Cover Braided Hydraulic Hose

Quote on request

SAE 100 R16 hydraulic hose is a high-pressure rubber hose reinforced with steel wire braid. It is designed for demanding hydraulic applications requiring high strength, flexibility, and reliable performance. Suitable for industrial machinery, construction equipment, and heavy-duty hydraulic systems.

SKU: SAE-100-R14-R16-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE Categories: ,

Product Specifications

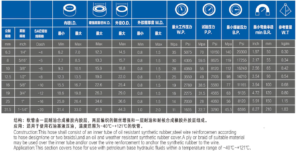

Specification Table

Catalogue parameters for size, pressure, bend radius and weight. This table can be edited in the product editor.

Product Parameters

ProductSAE 100 R14 / R16 Wrapped Cover Braided Hydraulic Hose
Catalog referenceHose brochure catalog page 28.
Editable table fieldsI.D., reinforced outside diameter, outside diameter, working pressure, proof pressure, burst pressure, minimum bend radius, and weight.
Selection noteConfirm hose size, pressure rating, cover type, temperature range, application medium, fitting end type, quantity, and delivery market before quotation.

Description

Specification Table



Product Description

SAE 100 R16 hydraulic hose is a compact high-pressure hydraulic hose reinforced with one or two layers of high-tensile steel wire braid. It is designed for medium to high-pressure hydraulic systems where high strength, flexibility, and durability are required.

Compared with traditional R2 hoses, SAE 100 R16 offers a smaller outer diameter and tighter bending radius, making it ideal for compact installations and modern hydraulic systems.

This hose delivers excellent resistance to oil, abrasion, and weather conditions, ensuring long service life and stable performance in demanding industrial environments.

Key Features

  • High-pressure steel wire braided hydraulic hose
  • Compact structure with smaller outer diameter
  • Excellent flexibility and tight bending radius
  • Strong resistance to oil, abrasion, and weather
  • High burst pressure and reliable performance
  • Long service life under heavy-duty use

Applications

  • Industrial hydraulic systems
  • Construction machinery
  • Mining equipment
  • Agricultural machinery
  • Heavy-duty fluid transfer systems
  • Engineering machinery hydraulic lines

Construction

  • Inner Tube: Oil resistant synthetic rubber
  • Reinforcement: One or two layers of high tensile steel wire braid
  • Outer Cover: Abrasion and weather resistant synthetic rubber

Working Temperature

  • -40°C to +100°C

Product Technical Details

SAE 100 R16 Wrapped Cover Braided Hydraulic Hose technical parameters and application fit

This product page is organized for quotation and engineering review. Confirm hose size, pressure rating, medium, temperature, fitting ends and quantity before final selection.

ConstructionWrapped rubber cover, synthetic rubber tube and steel wire braid reinforcement.
ReinforcementOne or two wire braid reinforcement, plus specialty textile or compact lines where applicable.
CoverWrapped cover for abrasion resistance, handling grip and outdoor service conditions.
Working pressureRanges from low return lines to high-pressure braided hose; final pressure depends on standard and I.D.
Burst pressureConfirm minimum burst pressure from the product chart; do not mix low pressure return hose with pressure lines.
TemperatureCommon hydraulic oil service is usually around -40C to +100C; special media or heat requires confirmation.
StandardSAE 100 R1 / R2 / R3 / R6 / R16 / R17 / R19, EN853, EN857 and related wrapped cover families.
ApplicationOutdoor machinery, mining, plantation equipment, repair shops and severe-duty replacement lines.
Fitting compatibilityMatch ferrule, stem and crimp diameter to wrapped cover hose construction.

Product FAQ

How should I select wrapped cover braided hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, agriculture, palm oil equipment, repair workshops and distributors.
