SAE 100 R13 / R15 Spiral Hydraulic Hose

SAE 100 R13 / R15 Spiral Hydraulic Hose products from the customer catalogue.

Live categories Distributor inquiry Specification review

SAE 100 R13 / R15 Spiral Hydraulic Hose products from the customer catalogue.

Technical Selection Guide

SAE 100 R13 / R15 Spiral Hydraulic Hose applications, structure and selection table

SAE 100 R13 / R15 Spiral Hydraulic Hose should be selected by application, hose construction, pressure, temperature, medium and fitting compatibility. The table below gives buyers a practical checklist before quotation.

Selection item	Technical guidance	Buyer check
Application	High-pressure excavators, loaders, mining equipment, heavy mobile machinery and severe impulse lines.	Confirm machine, medium, routing and duty cycle.
Structure	Synthetic rubber tube with multiple steel wire spiral reinforcement layers and heavy-duty rubber cover.	Tube, reinforcement and cover must match the working medium.
Standard / family	EN856 4SP / 4SH, SAE 100 R9 / R12 / R13 / R15 and spiral hydraulic hose families.	Do not quote only by outside diameter or appearance.
Pressure	High pressure class; many spiral hose lines are selected for severe-duty pressure and impulse service.	Final working pressure must be checked by hose I.D. and datasheet.
Temperature	Typical hydraulic oil range is around -40C to +100C unless a special high-temperature compound is specified.	Confirm oil, water, steam, chemical or ambient heat conditions.
Fitting compatibility	Use spiral hose fittings and heavy-duty ferrules compatible with the exact hose series.	Match fitting stem, ferrule, crimp data and end standard.

Suitable industries

Mining, construction, heavy equipment service, drilling equipment and hydraulic repair shops.

Selection FAQ

How should I select steel wire spiral hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, heavy equipment service, drilling equipment and hydraulic repair shops.

Category Parameters

SAE 100 R13 / R15 Spiral Hydraulic Hose technical parameter comparison

Use these parameters to compare hose families before opening individual product pages. Final pressure, burst and temperature values should be confirmed by size, catalogue chart and working medium.

Applications	High-pressure excavators, loaders, mining equipment, heavy mobile machinery and severe impulse lines.
Construction	Synthetic rubber tube with multiple steel wire spiral reinforcement layers and heavy-duty rubber cover.
Reinforcement	Four-spiral or multi-spiral high tensile steel wire reinforcement depending on EN856 / SAE family.
Cover	Wrapped abrasion-resistant rubber cover for high-pressure, vibration and outdoor duty.
Standards / product family	EN856 4SP / 4SH, SAE 100 R9 / R12 / R13 / R15 and spiral hydraulic hose families.
Working pressure range	High pressure class; many spiral hose lines are selected for severe-duty pressure and impulse service.
Burst pressure	Burst pressure is size-dependent and must be checked against the selected 4SP, 4SH, R12, R13 or R15 chart.
Temperature range	Typical hydraulic oil range is around -40C to +100C unless a special high-temperature compound is specified.
Suitable industries	Mining, construction, heavy equipment service, drilling equipment and hydraulic repair shops.
Fitting compatibility	Use spiral hose fittings and heavy-duty ferrules compatible with the exact hose series.

Showing the single result

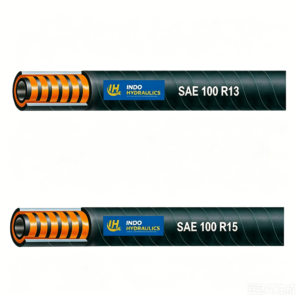

SAE 100 R13 / R15 Spiral Hydraulic Hose
Quote on request
