EN853 2SN/2ST Wrapped Cover Braided Hydraulic Hose

Review the catalog family, product category and inquiry path before requesting a quote.

Live categories Distributor inquiry Specification review
EN 853 2SN 2ST Wrapped Cover Hydraulic Hose

EN853 2SN/2ST Wrapped Cover Braided Hydraulic Hose

Quote on request

EN 853 2SN 2ST Wrapped Cover Hydraulic Hose is reinforced with two high tensile steel wire braids for high-pressure hydraulic applications. The wrapped textile cover ensures excellent abrasion resistance and durability in demanding working environments.

SKU: EN853-1SN-1ST-2SN-2ST-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE-1 Categories: ,

Product Specifications

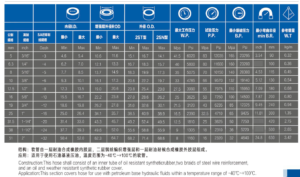

Specification Table

Catalogue parameters for size, pressure, bend radius and weight. This table can be edited in the product editor.

Product Parameters

ProductEN853 1SN/1ST 2SN/2ST Wrapped Cover Braided Hydraulic Hose
Catalog referenceHose brochure catalog page 30.
Editable table fieldsI.D., reinforced outside diameter, outside diameter, working pressure, proof pressure, burst pressure, minimum bend radius, and weight.
Selection noteConfirm hose size, pressure rating, cover type, temperature range, application medium, fitting end type, quantity, and delivery market before quotation.

Description

Specification Table

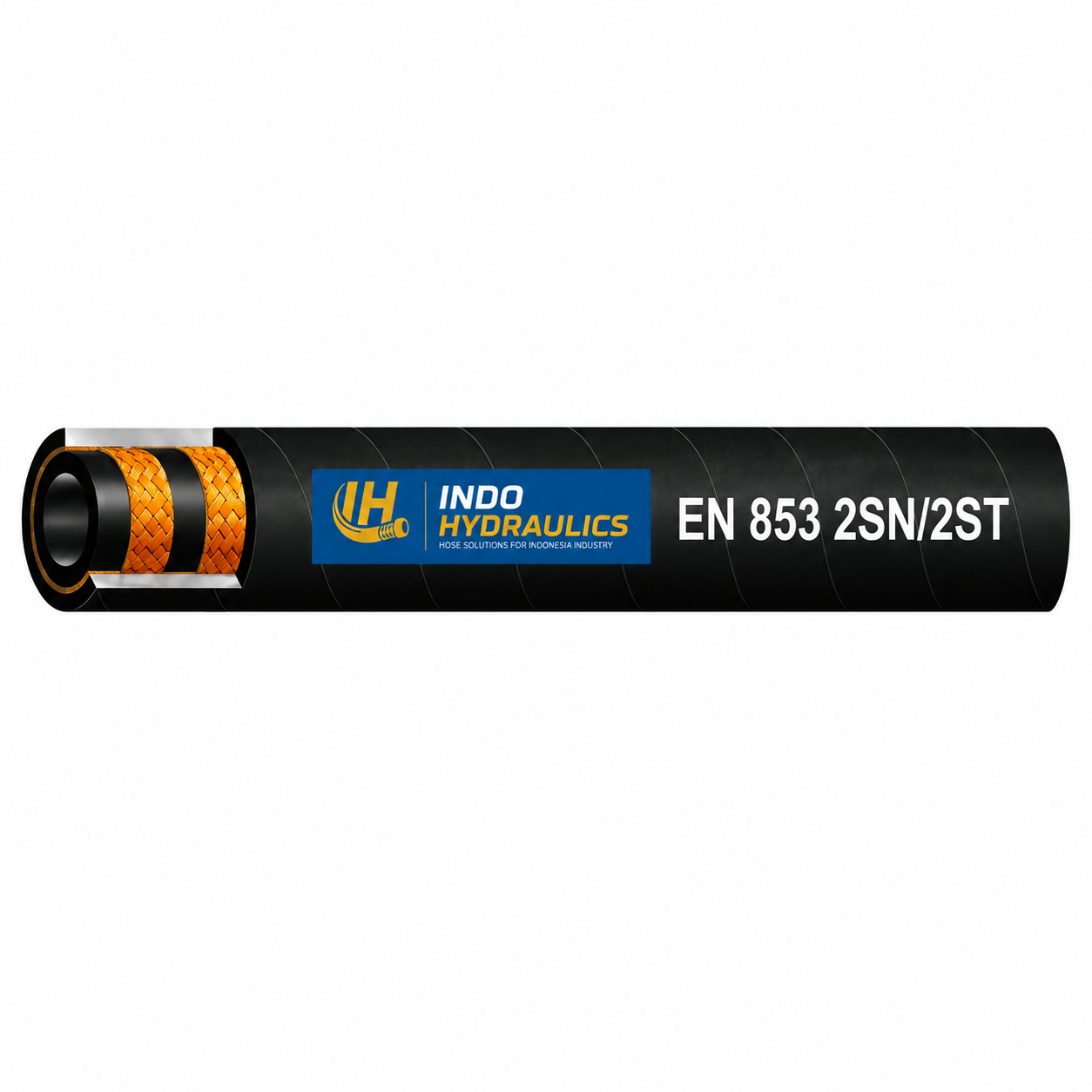

EN 853 2SN / 2ST Wrapped Cover Hydraulic Hose

EN 853 2SN / 2ST Wrapped Cover Hydraulic Hose is designed for high-pressure hydraulic systems requiring superior flexibility, durability, and reliable performance. Reinforced with two layers of high tensile steel wire braid, this hose provides excellent pressure resistance and extended service life under severe operating conditions.

The wrapped textile outer cover offers outstanding abrasion resistance, making it suitable for harsh environments such as construction sites, mining operations, agricultural equipment, and industrial machinery. It is widely used for conveying petroleum-based hydraulic oils, lubricating oils, water-glycol fluids, air, and water.

Construction

  • Tube: Oil-resistant synthetic rubber
  • Reinforcement: Two high tensile steel wire braids
  • Cover: Abrasion, weather, and ozone resistant wrapped synthetic rubber

Features

  • High-pressure performance
  • Excellent flexibility
  • Superior abrasion resistance
  • Long service life
  • Weather and ozone resistant
  • Suitable for demanding applications

Applications

  • Excavators
  • Wheel Loaders
  • Mining Equipment
  • Agricultural Machinery
  • Industrial Hydraulic Systems
  • Construction Machinery

Standard

EN 853 2SN / 2ST

Temperature Range

-40°C to +100°C (-40°F to +212°F)

OEM Service

Indo Hydraulics provides OEM branding, customized packaging, and private label services for distributors, wholesalers, and hydraulic hose assemblers worldwide.

Product Technical Details

EN853 2SN/2ST Wrapped Cover Braided Hydraulic Hose technical parameters and application fit

This product page is organized for quotation and engineering review. Confirm hose size, pressure rating, medium, temperature, fitting ends and quantity before final selection.

ConstructionWrapped rubber cover, synthetic rubber tube and steel wire braid reinforcement.
ReinforcementOne or two wire braid reinforcement, plus specialty textile or compact lines where applicable.
CoverWrapped cover for abrasion resistance, handling grip and outdoor service conditions.
Working pressureRanges from low return lines to high-pressure braided hose; final pressure depends on standard and I.D.
Burst pressureConfirm minimum burst pressure from the product chart; do not mix low pressure return hose with pressure lines.
TemperatureCommon hydraulic oil service is usually around -40C to +100C; special media or heat requires confirmation.
StandardSAE 100 R1 / R2 / R3 / R6 / R16 / R17 / R19, EN853, EN857 and related wrapped cover families.
ApplicationOutdoor machinery, mining, plantation equipment, repair shops and severe-duty replacement lines.
Fitting compatibilityMatch ferrule, stem and crimp diameter to wrapped cover hose construction.

Product FAQ

How should I select wrapped cover braided hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, agriculture, palm oil equipment, repair workshops and distributors.
