Description

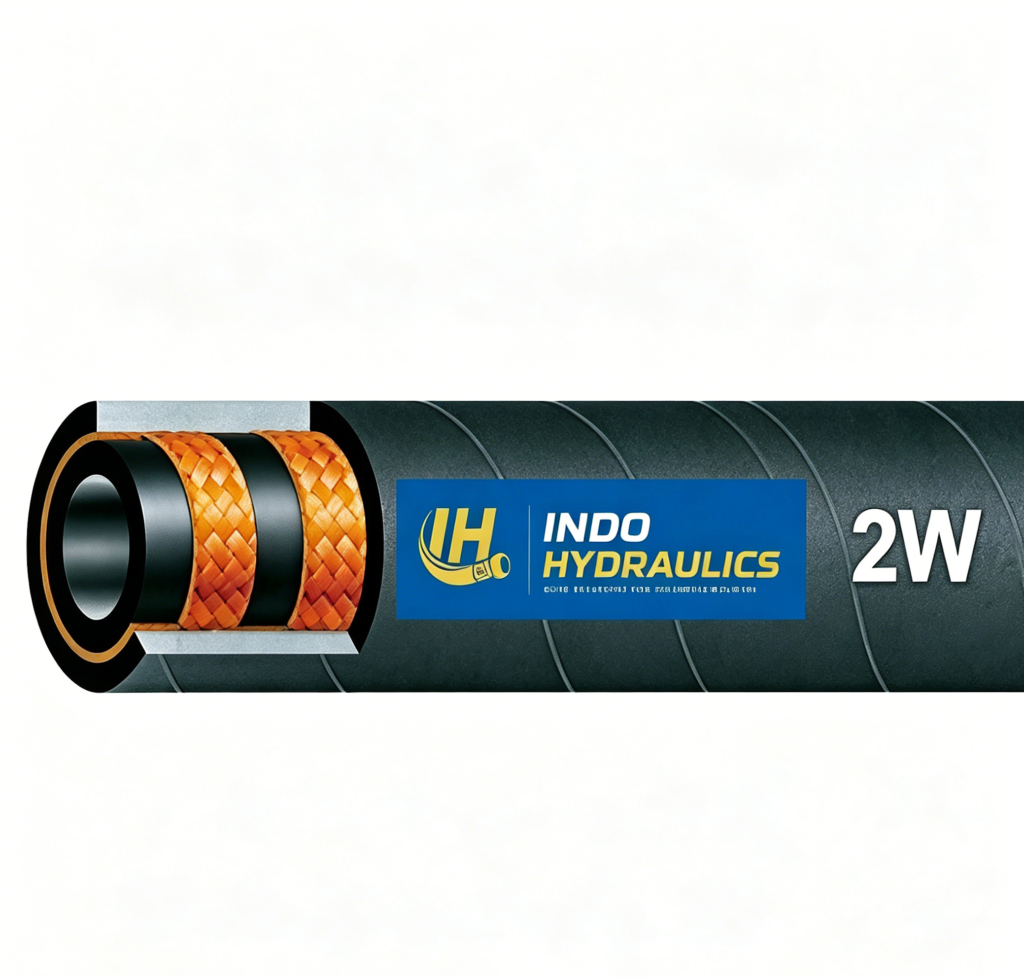

2 Wire Pressure Washer Hose technical overview
Two wire pressure washer hose for high pressure cleaning machines, workshops and plant maintenance teams that require stronger impulse resistance than one wire washer hose.
Catalog-based construction and application
| Tube | Synthetic rubber tube for water-based high pressure cleaning service. |
|---|---|
| Reinforcement | Two high tensile steel wire braids. |
| Cover | Abrasion and weather resistant synthetic rubber cover. |
| Working pressure | Catalog selection range: 25 MPa to 8.8 MPa by size; confirm final washer pressure before assembly. |
| Temperature | -40 C to +100 C typical hydraulic rubber hose operating range. |
| Standard / reference | Indo Hydraulics catalog washer hose family; selection references SAE J517 dimensional logic. |
| Application | High pressure cleaning, workshop washing, plant equipment washdown and field service units. |
| Fitting compatibility | Pressure washer fittings, BSP/NPT threaded ends and matched ferrules according to equipment connection. |
Size and pressure reference
The table below follows the dimensional pattern shown in the Indo Hydraulics hose catalog. Final hose assembly selection should confirm fluid, impulse load, route radius and crimp fitting series.
| I.D. inch | I.D. mm | O.D. mm | W.P. MPa / psi | Bend radius mm | Weight kg/m |
|---|---|---|---|---|---|
| 3/16" | 5 | 11.7 | 25 / 3630 | 100 | 0.22 |
| 1/4" | 6.3 | 13.3 | 22.5 / 3260 | 100 | 0.28 |
| 5/16" | 8 | 15.0 | 21 / 3045 | 115 | 0.34 |
| 3/8" | 10 | 17.0 | 18 / 2610 | 130 | 0.42 |
| 1/2" | 12.5 | 21.0 | 16 / 2320 | 180 | 0.55 |
| 5/8" | 16 | 24.7 | 13 / 1885 | 205 | 0.70 |
| 3/4" | 19 | 29.0 | 10.5 / 1520 | 240 | 0.86 |
| 1" | 25 | 37.0 | 8.8 / 1275 | 300 | 1.20 |
Selection notes for buyers
- Use for mobile machinery, palm oil equipment, compact routing and maintenance replacement.
- Confirm bend radius around cylinders, pumps, valve blocks and moving arms before assembly.
- Match ferrule and insert series to hose construction to reduce leakage and pull-off risk.
FAQ
Can this hose be supplied as a crimped hose assembly?
Yes. Indo Hydraulics can match hose, ferrule and fitting type for replacement or project supply, including BSP, JIC, ORFS, NPT and DIN metric connection patterns.
Which size should be stocked for maintenance?
Fast-moving maintenance sizes usually depend on the equipment population. For mobile hydraulic lines, 1/4 inch to 1 inch sizes are common; for industrial transfer hose, 1/2 inch to 4 inch sizes are often requested.
How should pressure be confirmed?
Choose by working pressure, burst margin, bend radius, temperature and fluid compatibility. Do not select by hose size alone.
