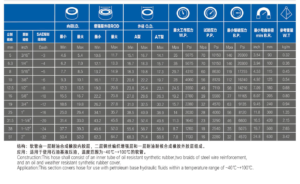

规格表

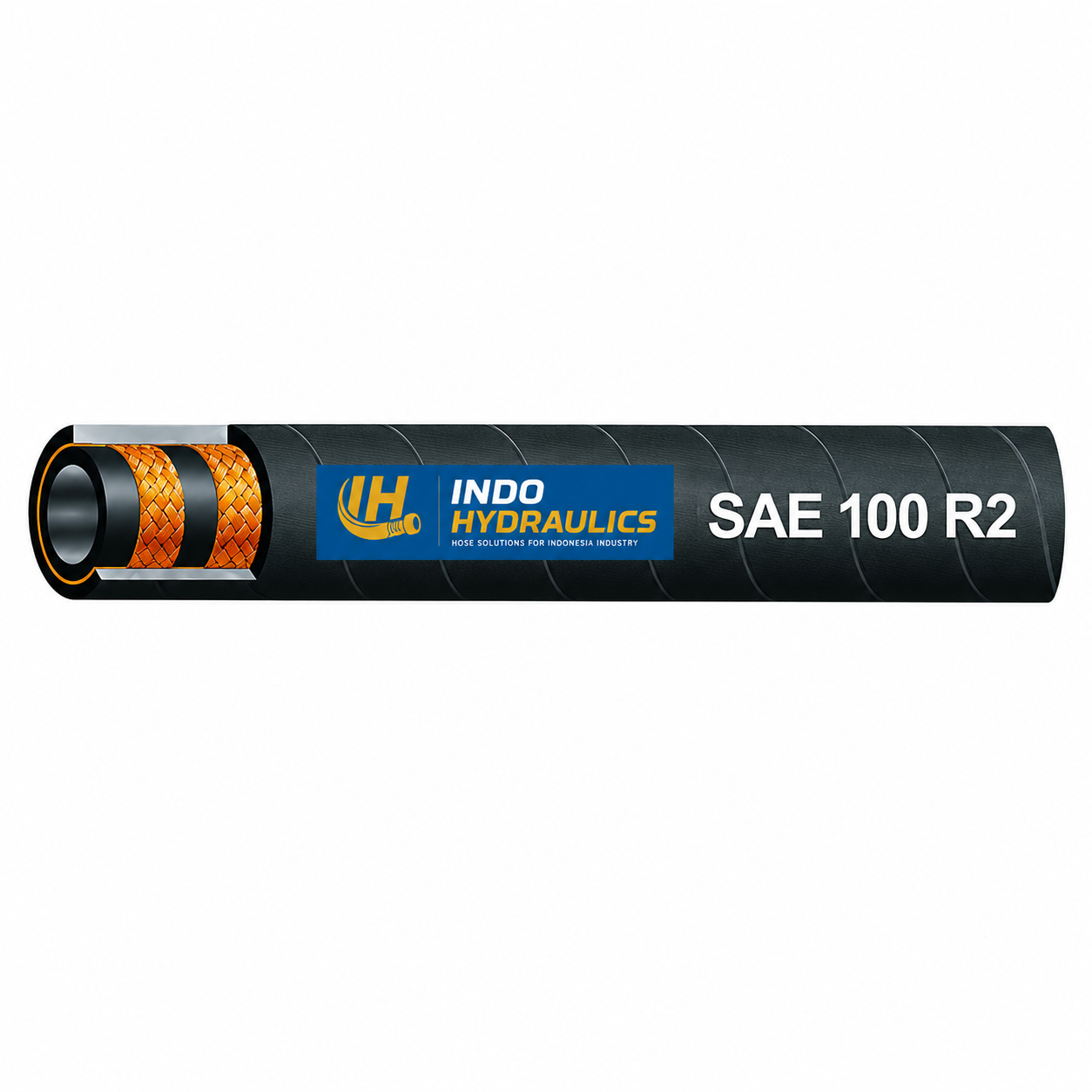

SAE 100 R2 布纹外覆编织液压胶管

SAE 100 R2 Wrapped Cover Braided Hydraulic Hose is designed for high-pressure hydraulic systems requiring superior durability and reliable performance. Reinforced with two layers of high tensile steel wire braid, this hose provides excellent pressure resistance, flexibility, and long service life in demanding working environments.

The wrapped textile outer cover offers outstanding abrasion resistance and is particularly suitable for severe operating conditions found in mining, construction, agriculture, forestry, and industrial machinery. It is widely used in hydraulic systems conveying petroleum-based hydraulic oils, lubricating oils, water-glycol fluids, air, and water.

工程建设

• Tube: Oil-resistant synthetic rubber
• Reinforcement: Two high tensile steel wire braids
• Cover: Wrapped synthetic rubber resistant to abrasion, weather, and ozone

Features

• High-pressure hydraulic hose
• Excellent abrasion resistance
• Superior flexibility and bend performance
• Long service life
• Resistant to weather and ozone
• Suitable for harsh working conditions

Applications

• Excavators
• Wheel Loaders
• Mining Equipment
• Agricultural Machinery
• Industrial Hydraulic Systems
• Construction Machinery
• Forestry Equipment

Standards

SAE J517 100 R2AT

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Available Cover

• Wrapped Cover
• Smooth Cover (Optional)

OEM 服务

Indo Hydraulics provides OEM branding, customized packaging, and private label services for distributors, wholesalers, and hydraulic hose assemblers worldwide.
