SAE 100 R4 Wrapped Cover Braided Hydraulic Hose

报价前可先查看目录系列、产品分类和询价路径。

实时分类 经销商询价 规格审查
SAE 100 R4 Wrapped Cover Hydraulic Suction Hose

SAE 100 R4 Wrapped Cover Braided Hydraulic Hose

询价获取报价

SAE 100 R4 Wrapped Cover Hydraulic Hose is designed for hydraulic oil suction and low-pressure return line applications. Reinforced with high-strength textile cords and a steel wire helix, it provides excellent vacuum resistance, flexibility, and durability for industrial and mobile hydraulic systems.

SKU： SAE-100-R4-R5-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE 分类： ,

产品规格

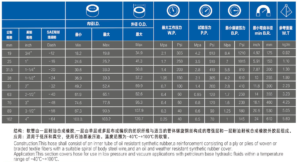

规格表

尺寸、压力、弯曲半径和重量等目录参数，可在产品编辑器中维护。

Product Parameters

产品SAE 100 R4 / R5 布纹外覆编织液压胶管
Catalog referenceHose brochure catalog page 26.
Editable table fieldsI.D., reinforced outside diameter, outside diameter, working pressure, proof pressure, burst pressure, minimum bend radius, and weight.
Selection noteConfirm hose size, pressure rating, cover type, temperature range, application medium, fitting end type, quantity, and delivery market before quotation.

描述

规格表

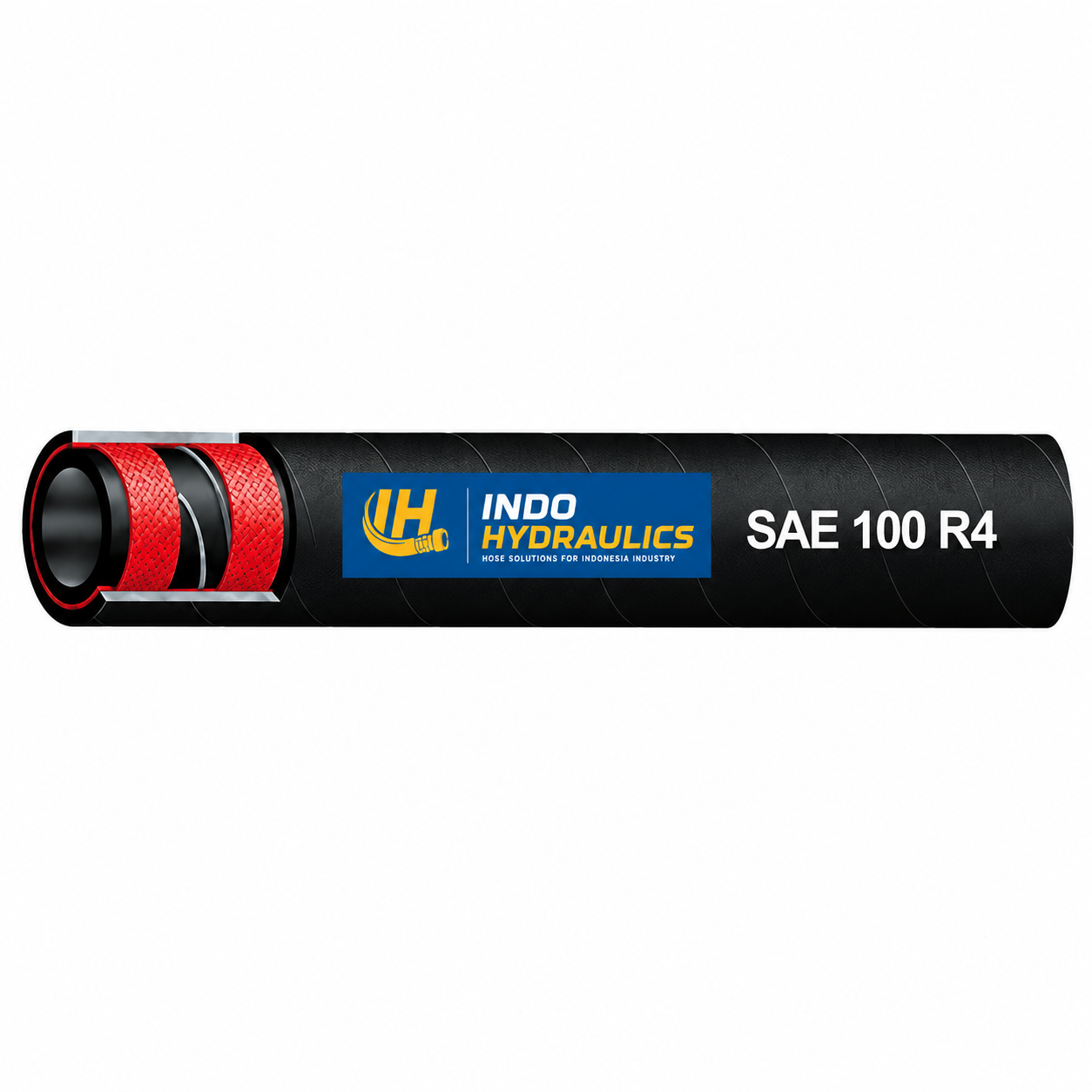

SAE 100 R4 Wrapped Cover Hydraulic Hose

SAE 100 R4 Wrapped Cover Hydraulic Hose is specifically designed for hydraulic oil suction and low-pressure return line applications. Manufactured in accordance with SAE J517 100 R4, the hose combines an oil-resistant synthetic rubber tube with high-strength textile reinforcement and a helical steel wire to provide excellent vacuum resistance and prevent hose collapse during suction operations.

The wrapped cover construction offers superior abrasion, weather, ozone, and oil resistance, making it suitable for demanding industrial environments. This hose is widely used in hydraulic systems for construction machinery, mining equipment, agricultural machinery, forklifts, cranes, and industrial hydraulic power units.

工程建设

Tube: Black oil-resistant synthetic rubber

Reinforcement: High-strength textile cord with steel wire helix

Cover: Wrapped synthetic rubber resistant to abrasion, weather, ozone, and oil

Features

  • Designed for hydraulic oil suction and return lines
  • Excellent vacuum resistance
  • Steel wire helix prevents hose collapse
  • Flexible and easy to install
  • Superior abrasion resistance
  • Long service life
  • Reliable performance in demanding environments

Applications

  • Hydraulic Oil Suction Lines
  • Low-Pressure Return Lines
  • Construction Machinery
  • Mining Equipment
  • Agricultural Machinery
  • Forklifts
  • Cranes
  • Industrial Hydraulic Power Units

Suitable Media

  • Petroleum-based Hydraulic Oil
  • Lubricating Oil
  • Mineral Oil
  • Water-based Hydraulic Fluids (where compatible)

标准

SAE J517 100 R4

Temperature Range

-40°C to +100°C (-40°F to +212°F)

OEM 服务

Indo Hydraulics provides OEM branding, customized hose marking, private label packaging, and bulk supply solutions for distributors, hydraulic equipment manufacturers, and industrial customers worldwide.

Product Technical Details

SAE 100 R4 Wrapped Cover Braided Hydraulic Hose technical parameters and application fit

This product page is organized for quotation and engineering review. Confirm hose size, pressure rating, medium, temperature, fitting ends and quantity before final selection.

工程建设Wrapped rubber cover, synthetic rubber tube and steel wire braid reinforcement.
ReinforcementOne or two wire braid reinforcement, plus specialty textile or compact lines where applicable.
CoverWrapped cover for abrasion resistance, handling grip and outdoor service conditions.
Working pressureRanges from low return lines to high-pressure braided hose; final pressure depends on standard and I.D.
Burst pressureConfirm minimum burst pressure from the product chart; do not mix low pressure return hose with pressure lines.
TemperatureCommon hydraulic oil service is usually around -40C to +100C; special media or heat requires confirmation.
标准SAE 100 R1 / R2 / R3 / R6 / R16 / R17 / R19, EN853, EN857 and related wrapped cover families.
应用Outdoor machinery, mining, plantation equipment, repair shops and severe-duty replacement lines.
Fitting compatibilityMatch ferrule, stem and crimp diameter to wrapped cover hose construction.

Product FAQ

How should I select wrapped cover braided hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, agriculture, palm oil equipment, repair workshops and distributors.
