SAE 100 R2 光面液压胶管

Product Overview

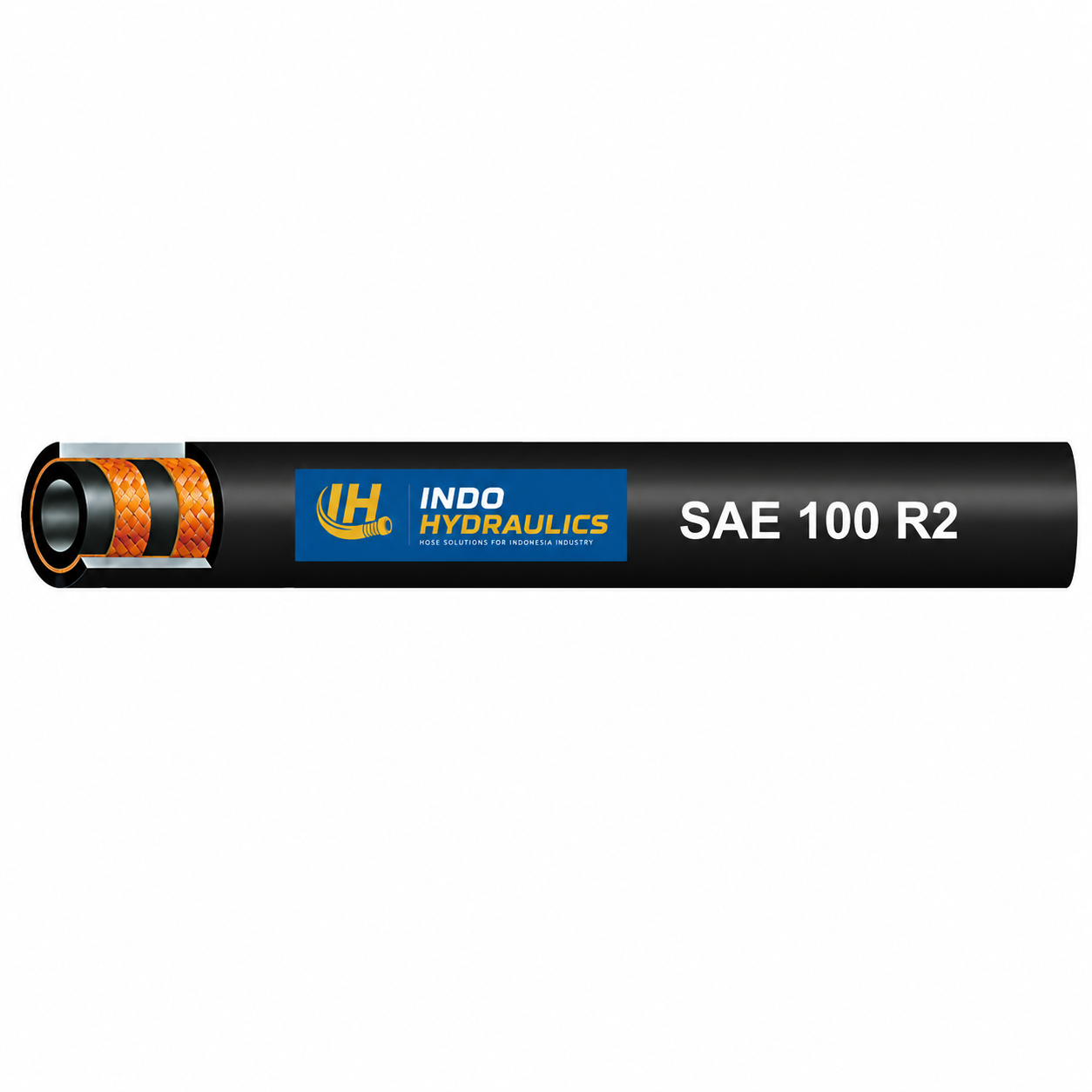

SAE 100 R2 Smooth Cover Hydraulic Hose is a high-pressure hydraulic hose reinforced with two layers of high tensile steel wire braid. It is designed for demanding hydraulic applications requiring higher working pressure and excellent impulse resistance.

Manufactured in accordance with SAE J517 100R2AT standards, this hose is widely used in construction machinery, mining equipment, agricultural machinery, industrial hydraulic systems, and heavy-duty mobile equipment.

Indo Hydraulics SAE 100 R2 hydraulic hose features premium synthetic rubber compounds, high-strength steel wire reinforcement, and abrasion-resistant smooth cover for extended service life in harsh operating environments.

Features

• Meets or exceeds SAE J517 100R2AT standards.
• Reinforced with two layers of high tensile steel wire braid.
• Excellent pressure resistance and impulse performance.
• High abrasion-resistant smooth outer cover.
• Superior flexibility for easy installation.
• Compatible with petroleum-based hydraulic fluids.
• Suitable for heavy-duty hydraulic applications.

工程建设

Inner Tube

Oil-resistant synthetic rubber.

Reinforcement

Two high tensile steel wire braids.

Outer Cover

Black smooth synthetic rubber resistant to abrasion, weather, ozone, and oil.

Applications

SAE 100 R2 hydraulic hose is recommended for:

• Excavators
• Wheel loaders
• Mining machinery
• Palm oil equipment
• Cranes
• Construction equipment
• Agricultural machinery
• Industrial hydraulic systems
• Hydraulic power units

Working Temperature

-40°C to +100°C (-40°F to +212°F)

Maximum intermittent temperature:

+120°C (+248°F)

Compatible Fluids

• Petroleum-based hydraulic oils
• Lubricating oils
• Water-glycol fluids
• Emulsified hydraulic fluids

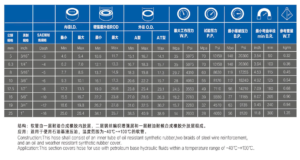

Available Sizes

Available from:

3/16″ to 2″

(Custom sizes available upon request.)

Why Choose Indo Hydraulics SAE 100 R2 Hose?

✓ Premium rubber compound for longer service life

✓ High steel wire coverage for superior pressure performance

✓ Excellent impulse resistance

✓ Reliable quality for mining and industrial applications

✓ OEM and private label service available

Industries Served

• 矿山
• Palm Oil
• 工程建设
• 农业
• 制造业
• 船舶

Need technical support or quotation?

Contact Indo Hydraulics today for professional hydraulic hose solutions.
