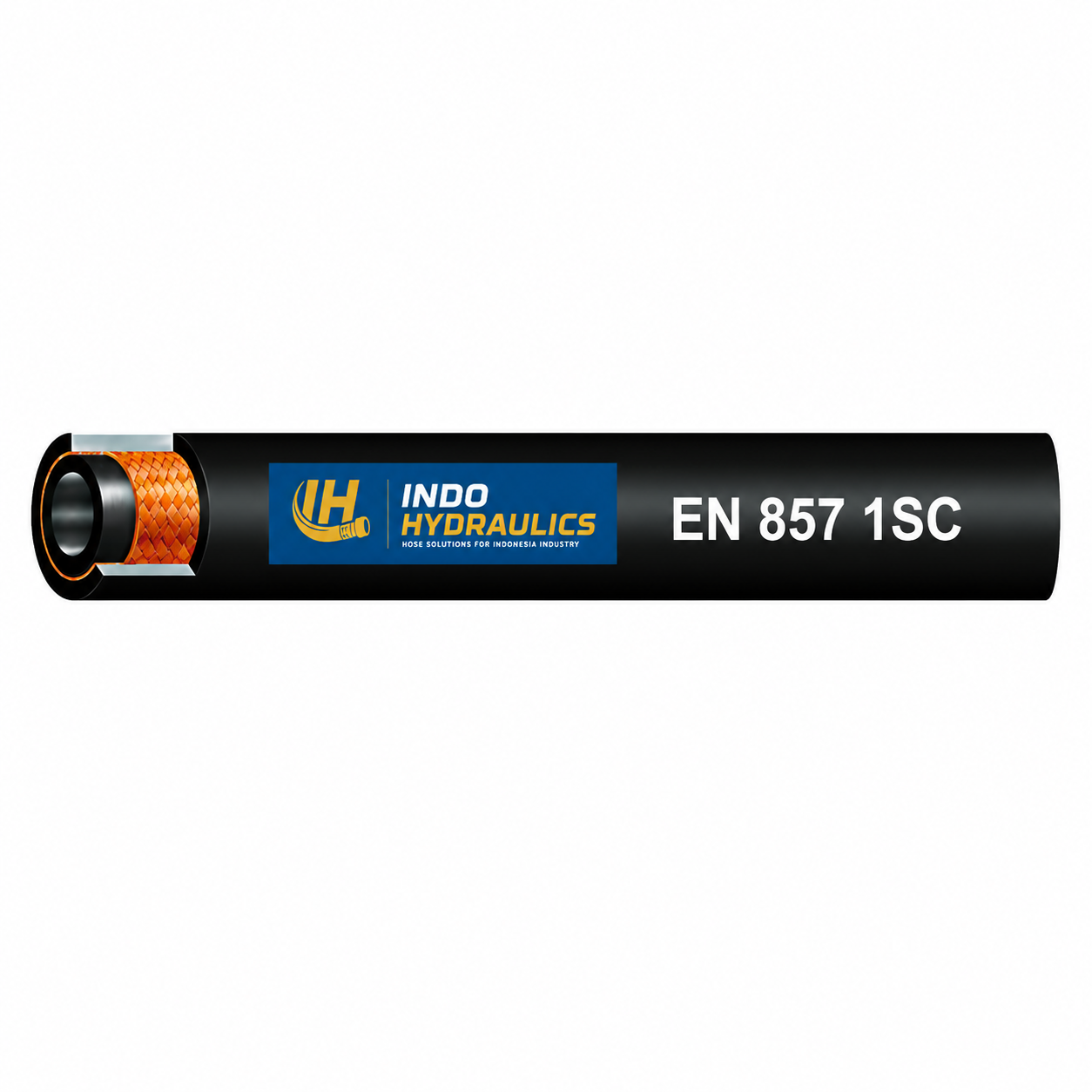

EN857 1SC / 2SC Compact Hydraulic Hose

EN857 1SC / 2SC Compact Hydraulic Hose is designed for high-pressure hydraulic applications requiring reduced outside diameter, excellent flexibility, and reliable performance. Manufactured according to EN857 standards, these compact hydraulic hoses provide superior pressure resistance and a smaller bend radius compared with traditional EN853 hose constructions.

EN857 1SC hose is reinforced with one high tensile steel wire braid, while EN857 2SC hose features two high tensile steel wire braids for higher pressure applications. Both hose types are widely used in compact hydraulic systems where space-saving installation and flexibility are critical.

The compact construction allows easier routing in confined spaces while maintaining excellent impulse performance, abrasion resistance, and long service life.

Features

• Manufactured according to EN857 1SC / EN857 2SC standards
• Compact design with reduced outside diameter
• Smaller bend radius for easier installation
• Excellent flexibility and routing capability
• High pressure and impulse resistance
• Abrasion, weather, and ozone resistant cover
• Suitable for OEM hydraulic hose assemblies
• Long service life under demanding working conditions

工程建设

Tube

Oil-resistant synthetic rubber.

Reinforcement

• EN857 1SC: One high tensile steel wire braid.
• EN857 2SC: Two high tensile steel wire braids.

Cover

Abrasion-resistant, weather-resistant, and ozone-resistant synthetic rubber.

Applications

EN857 1SC / 2SC compact hydraulic hoses are widely used in:

• Construction machinery
• Excavators and wheel loaders
• Agricultural equipment
• Forklifts and material handling equipment
• Industrial hydraulic systems
• Mining machinery
• Mobile hydraulic equipment

Fluid Compatibility

Suitable for petroleum-based hydraulic fluids, lubricating oils, water-glycol fluids, and other commonly used hydraulic media.

Temperature Range

-40°C to +100°C (-40°F to +212°F)

OEM branding, customized packaging, and hydraulic hose assembly services are available.
