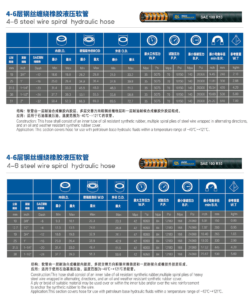

Tabel Spesifikasi

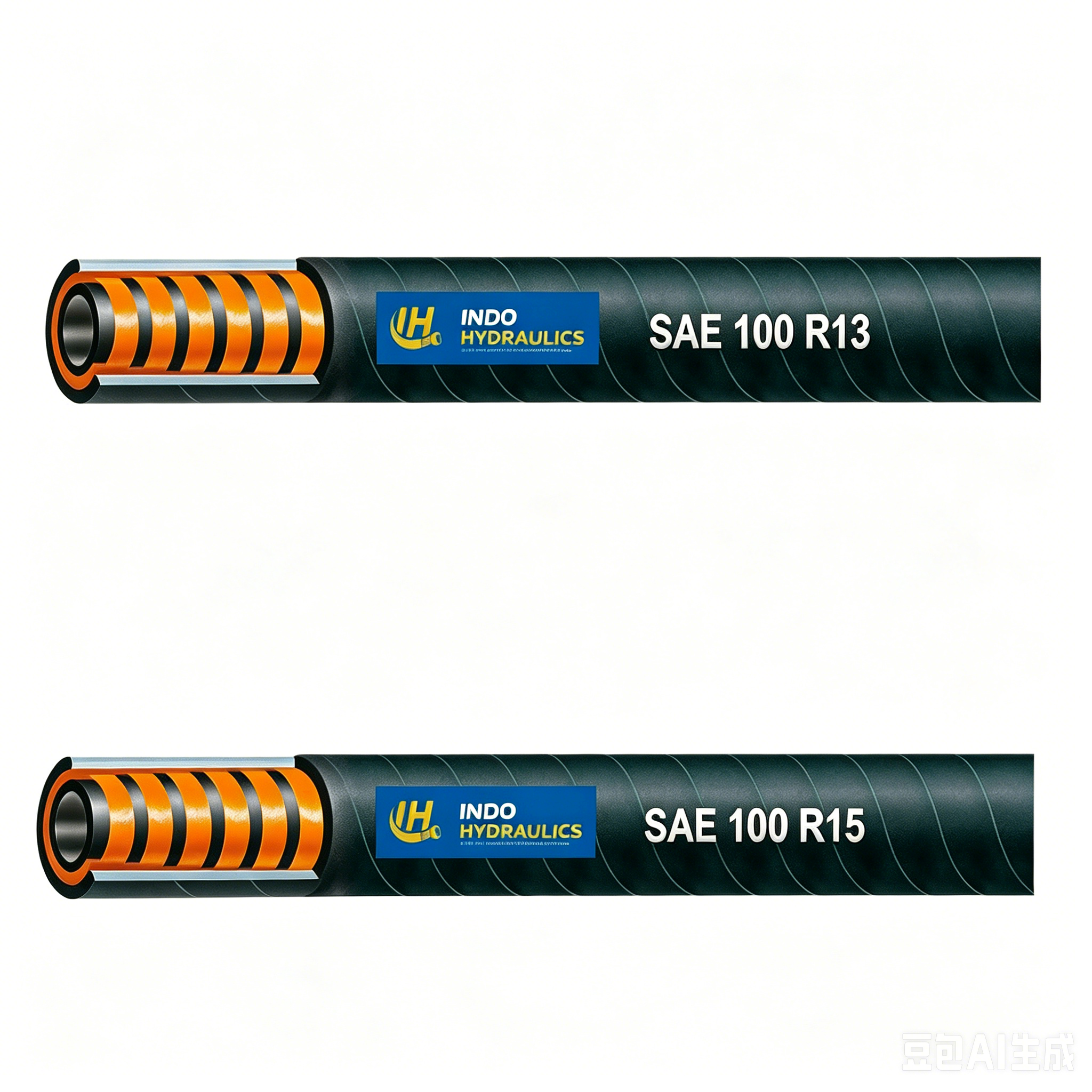

Selang Hidrolik Spiral SAE 100 R13 / R15

SAE 100 R13 / R15 Spiral Hydraulic Hose is engineered for ultra high-pressure hydraulic systems operating under the most demanding conditions. Reinforced with multiple layers of high tensile steel wire spiral reinforcement, these hoses deliver outstanding pressure capability, superior impulse performance, and extended service life.

Designed for heavy-duty applications, SAE 100 R13 and R15 hoses are widely used in mining equipment, large excavators, construction machinery, oil & gas equipment, and industrial hydraulic systems where maximum reliability is required.

The wrapped cover construction provides excellent resistance to abrasion, weather, ozone, and harsh operating environments.

Konstruksi

Tube: Oil-resistant synthetic rubber

Reinforcement: Multiple layers of high tensile steel wire spiral reinforcement

• SAE 100 R13: Four or six steel wire spirals
• SAE 100 R15: Four or six steel wire spirals with enhanced impulse performance

Cover: Wrapped synthetic rubber resistant to abrasion, weather, and ozone

Features

• Ultra high-pressure hydraulic hose
• Multiple steel wire spiral reinforcement
• Excellent impulse resistance
• Superior abrasion resistance
• Long service life
• High reliability under severe operating conditions
• Suitable for heavy-duty hydraulic systems

Applications

• Mining Equipment
• Large Excavators
• Heavy Construction Machinery
• Oil & Gas Equipment
• Forestry Machinery
• Industrial Hydraulic Systems
• Mobile Hydraulic Equipment

Standards

• SAE J517 100 R13
• SAE J517 100 R15

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Layanan OEM

Indo Hydraulics provides OEM branding, customized packaging, private label services, and hydraulic hose assembly solutions for distributors, wholesalers, and industrial customers worldwide.
