SAE 100 R1 布纹外覆编织液压胶管

报价前可先查看目录系列、产品分类和询价路径。

实时分类 经销商询价 规格审查

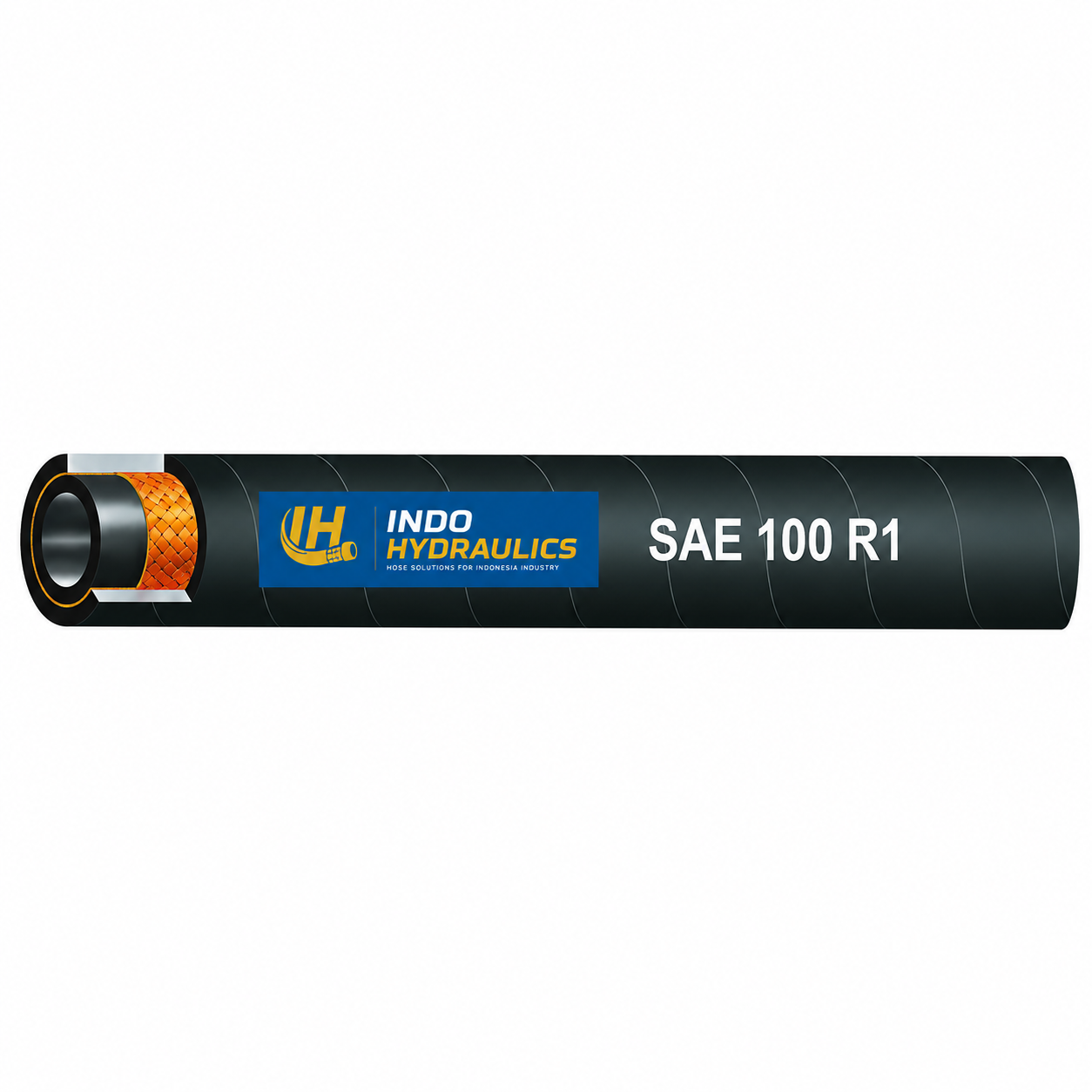

SAE 100 R1 Wrapped Cover Hydraulic Hose with single wire braid reinforcement

SAE 100 R1 布纹外覆编织液压胶管

询价获取报价

SAE 100 R1 Wrapped Cover Hydraulic Hose is reinforced with one high tensile steel wire braid for medium-pressure hydraulic applications. The textile wrapped cover provides excellent abrasion resistance, making it ideal for construction, mining, agricultural and industrial hydraulic systems.

SKU： SAE-100-R1-WRAPPED-COVER-BRAIDED-HYDRAULIC-HOSE 分类： ,

产品规格

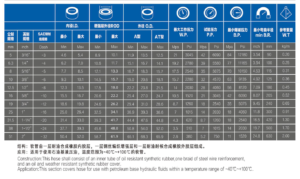

规格表

尺寸、压力、弯曲半径和重量等目录参数，可在产品编辑器中维护。

Product Parameters

产品SAE 100 R1 布纹外覆编织液压胶管
Catalog referenceHose brochure catalog page 23.
Editable table fieldsI.D., reinforced outside diameter, outside diameter, working pressure, proof pressure, burst pressure, minimum bend radius, and weight.
Selection noteConfirm hose size, pressure rating, cover type, temperature range, application medium, fitting end type, quantity, and delivery market before quotation.

描述

规格表

SAE 100 R1 Wrapped Cover Hydraulic Hose

The SAE 100 R1 Wrapped Cover Hydraulic Hose is designed for medium-pressure hydraulic systems requiring flexibility, durability, and reliable performance. Reinforced with one layer of high tensile steel wire braid, this hose provides excellent pressure resistance and long service life.

The textile wrapped outer cover offers superior abrasion resistance, making it particularly suitable for harsh working environments such as mining, construction, agriculture, and industrial machinery. It is compatible with petroleum-based hydraulic fluids, water-glycol fluids, lubricating oils, air, and water.

工程建设

  • Tube: Oil-resistant synthetic rubber
  • Reinforcement: One high tensile steel wire braid
  • Cover: Abrasion, weather, and ozone resistant wrapped synthetic rubber

Features

  • Excellent flexibility
  • Superior abrasion resistance
  • Long service life
  • Stable performance under medium pressure
  • Suitable for severe working conditions

Applications

  • Excavators
  • Wheel loaders
  • Mining equipment
  • Agricultural machinery
  • Industrial hydraulic systems
  • Construction machinery

Standards

SAE J517 100 R1AT / EN853 1SN

Temperature Range

-40°C to +100°C (-40°F to +212°F)

Product Technical Details

SAE 100 R1 布纹外覆编织液压胶管 technical parameters and application fit

This product page is organized for quotation and engineering review. Confirm hose size, pressure rating, medium, temperature, fitting ends and quantity before final selection.

工程建设Wrapped rubber cover, synthetic rubber tube and steel wire braid reinforcement.
ReinforcementOne or two wire braid reinforcement, plus specialty textile or compact lines where applicable.
CoverWrapped cover for abrasion resistance, handling grip and outdoor service conditions.
Working pressureRanges from low return lines to high-pressure braided hose; final pressure depends on standard and I.D.
Burst pressureConfirm minimum burst pressure from the product chart; do not mix low pressure return hose with pressure lines.
TemperatureCommon hydraulic oil service is usually around -40C to +100C; special media or heat requires confirmation.
标准SAE 100 R1 / R2 / R3 / R6 / R16 / R17 / R19, EN853, EN857 and related wrapped cover families.
应用Outdoor machinery, mining, plantation equipment, repair shops and severe-duty replacement lines.
Fitting compatibilityMatch ferrule, stem and crimp diameter to wrapped cover hose construction.

Product FAQ

How should I select wrapped cover braided hydraulic hose?

Start with working pressure, hose I.D., medium, temperature, bend radius, routing space and fitting end standard. Then confirm the exact catalogue line and crimp data.

Can I use the same fittings for every hose in this family?

No. Fitting stem, ferrule and crimp diameter must match hose construction, cover type and pressure class.

What information should I send for a faster quote?

Send hose standard or product name, I.D. or dash size, working pressure, temperature, medium, fitting standard, quantity and application photos when available.

Which industries commonly use this product?

Mining, construction, agriculture, palm oil equipment, repair workshops and distributors.
